GT SUPERCHARGER
GT SUPERCHARGER
APPLICATION CHART (check for applicable cars)

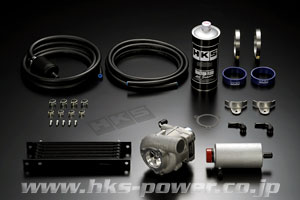

　 GT SUPERCHARGER Universal Kit

It is a kit that has main unit of GT SUPERCHARGER and the traction oil related parts. Please use this kit for a vehicle that’s not in the Vehicle Specific Kit.


COMPLETE PARTS
●Main unit
●Traction Fluid I 800ml		 ●Oil cooler
●Hose Assy for Traction Fluid×2		 ●Oil Tank
●Others
(* Pulley is not included.)
MODEL MAX IMPELLER
SPEED		 MAX PRESSURE
RATIO		 MAX
FLOW		 POWER
RANGE		 DRIVE UNIT
RATIO		 UNIT
WEIGHT
rpm - m3/min ps - kg
GTS4015HP 110,000 2.6 8.1 100～150 9.875 3.5
GTS7040 110,000 2.5 22 200～400 9.444 4.2
GTS7040L 110,000 2.5 22 150～400 9.444 4.2
GTS8550 100,000 2.6 26 250～500 9.368 5.3
GTS8555 100,000 2.6 28 300～550 9.368 5.3

Other Parts

These are the other supporting parts for installation for GT Supercharger Universal Kit. The parts needed would be different for each vehicle and the also might have to modify the parts.

 　
STD BLOW OFF VALVE


PULLEY φ85		 　
PULLEY φ70		 　
PULLEY φ60


BLOW OFF VALVE FLANGE		 　
SUCTION FLANGE		 　
BRACKET GTS8550/7040/4015HP
