BLOW OFF
SUPER SQV SERIES
APPLICATION CHART (check for applicable cars)
  SSQV IV D

This newly designed SSQV IVD uses a "boost drive controller" for positive boost operation.
This new system SQV can function on vehicles which have no vacuum, such as diesel engines as well as conventional turbo cars.
An on/off switch allows operation of the SQV to be switched on or off at any time and a trigger switch can allow activation of the SQV on demand.

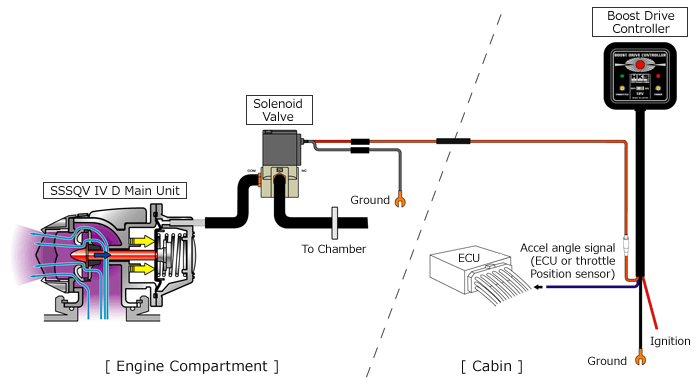

■System Structure


* 1KD installation

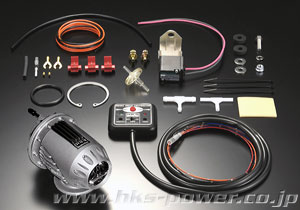

■Product Contents

- SSQV IVD Main Unit
- Boost Drive Controller
- Solenoid Valve
- Other short parts for fitting

* Some other parts are necessary (Flange, Pipe, Hose etc) when fitting to a vehicle. Please check these items before purchase.

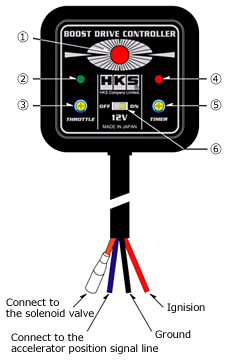

(1) Trigger Switch
The SQV can be operated on demand. Illuminates when SQV is operating.

(2) Green indicator
Light illuminates when BCD is not in standby mode.

(3) Activation point adjustment
Adjust the accelerator point where the SQV will activate.

(4) Red indicator
Light illuminates when BDC is in standby mode.

(5) Operation duration adjustment
Adjusts the operation time of the SQV.

(6) On/Off Switch
Switches SQV function on or off.

Indication contditions

  At Idling During
acceleration
Acceleration OFF
SQV working
Acceleraitor OFF
SQV stopped
ON/OFF
switch OFF
Green Indicator on on
Red Indicator on
Trigger switch on
