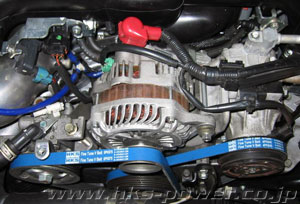

The Engine compartment dress-up part; "Fine Tune V Belt."
Latest technology protects vehicles' conditions while improving engine compartment appearance.
|
|
|
Features
Using the latest in-belt technology gives the following benefits:
- Increased durability at high temperatures which can be found in the engine bay of tuned vehicles.
- Increased performance in cold weather and condition.
- Lightweight and good friction tolerance properties which means that excess tension is not required while anti-sound properties reduces belt squeal.
- * Back face is blue colored with HKS logo.
- Blue is used in HKS intake hose which is for coordination in the whole engine bay.
- Colored nylon fabric used for good anti-color fading properties.
- HKS logo, product name, and belt length are printed on each belt.
|
|
Performance
EPDM (Ethylene Propylene Diene Monomer) Rubber was selected because of:
- Better durability and performance in hotter or colder conditions with improved friction tolerance.
- Much lighter than previous version of belt.
- Short fiber mixture in rib rubber improves the performance over previous version.
|
|
Specification
 |
|
|
Performance Comparison with Stock Belt
|
| Hight Temperature Durability |
Low Temperature Durability |
Abrasion Resistance |
Weight |
Noise |
| 4 times greater |
10 times greater |
30% improved |
17% lighter |
Less |
|
- Button bolts were installed to 24996-AK012 (5PK875) and 24996-AK013 (5PK885) during the test.
- When using these 2 belts above, a stock V belt may come in contact with a stock alternator adjustment bolt due to an insufficient clearance between them.
Using the provided button bolts can prevent abrasion of the V belt.
|
|
|
